  Page number:  FD-C4F-710

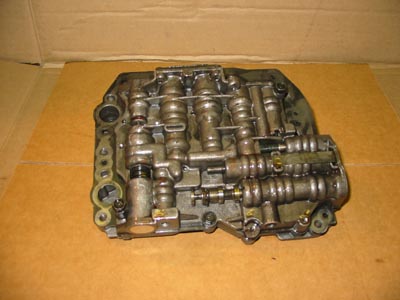

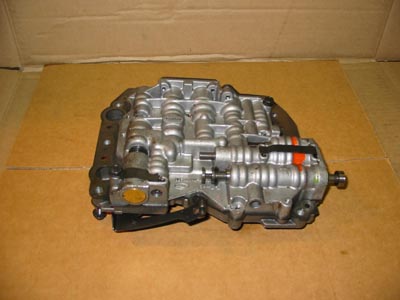

VALVE BODY ASSEMBLY, Main
Call 877-771-3372 for current price & availability
Style		OA/Thick	OD/Deep	ID/Wide	Part No.	Price	Picture
	Tooth Counts			ID Marks
	Year	Miscellaneous Info
		Part Info			Number
Call for current price & availability. Listed prices are subject to change without notice!
8 bolts 1 slot C4AP-7A092-A					FD-C4F-71-010V-H9	Price
				C4AP-7A092-A {Top} C4AP-7A101-B {Bottom}
	64	D1-D2 shift pattern 8 bolts to case One slot in manual control valve No spring
8 bolts 1 slot C5AP-7A092-A					FD-C4F-71-000F-K5	Price
				C5AP-7A092-A {Top} C5AP-7A101-A {Bottom}
	65	8 bolts to case D1-D2 shift pattern One slot in manual control valve
8 bolts 1 slot C5AP-7A092-A					FD-C4F-71-006Y-JM	Price	Picture not available
				C5AP-7A092-A {Top} C??P-7A101-C {Bottom}
	65	8 bolts to case D1-D2 shift pattern One slot in manual control valve
8 bolts 1 slot C5AP-7A092-A Tag = 1-T					FD-C4F-71-00NQ-HW	Price	Picture not available
				C5AP-7A092-A {Top} C5AP-7A101-A {Bottom}
		8 bolts to case D1-D2 shift pattern One slot in manual control valve
8 bolts 3 slots C7AP-7A092-B					FD-C4F-71-000A-JU	Price
				C7AP-7A092-B {Top} C7AP-7A101-B {Bottom}
	67	D-2-1 shift pattern 8 bolts to case Three slots in manual control valve
8 bolts 3 slots C8AP-7A092-B					FD-C4F-71-0006-E3	Price
				C8AP-7A092-B {Top} C7AP-7A101-D {Bottom}
	68	D-2-1 shift pattern 8 bolts to case Three slots in manual control valve
8 bolts 3 slots C8AP-7A092-B					FD-C4F-71-0070-JX	Price	Picture not available
				C8AP-7A092-B {Top} C7AP-7A101-B {Bottom}
	68	D-2-1 shift pattern 8 bolts to case Three slots in manual control valve
8 bolts 3 slots C8AP-7A092-B					FD-C4F-71-0001-CR	Price
				C8AP-7A092-B {Top} C9AP-7A101-E {Bottom}
	69	D-2-1 shift pattern 8 bolts to case Three slots in manual control valve
8 bolts Spool D0AP-A					FD-C4F-71-005V-9E	Price
				D0AP-7A092-A {Top} D0AP-7A101-A {Bottom}
	70-	8 bolts to case Spool valve Loose spring
8 bolts Spool D0AP-A Tag = 5E-2					FD-C4F-71-00RK-JM	Price	Picture not available
				D0AP-7A092-A {Top} D0AP-7A101-A {Bottom}
		8 bolts to case Spool valve Loose spring
					D0AZ-7A100-G
8 bolts Spool D0AP-A Tag = 5K-1					FD-C4F-71-00N5-F1	Price	Picture not available
				D0AP-7A092-A {Top} D0AP-7A101-A {Bottom}
	70	8 bolts to case Spool valve Loose spring
8 bolts Spool D0AP-A Tag = 5K-B					FD-C4F-71-00MK-CG	Price	Picture not available
				D0AP-7A092-A {Top} D0AP-7A101-AD {Bottom}
	70-	8 bolts to case Spool valve
8 bolts Spool D0AP-E					FD-C4F-71-0003-HW	Price
				D0AP-7A092-E {Top} D0AP-7A101-A2 {Bottom}
	70-71	8 bolts to case Spool valve Loose spring
8 bolts Spool D0DP-A					FD-C4F-71-015G-KG	Price	Picture not available
				D0DP-7A092-A {Top} D0DP-7A101-A {Bottom}
	70	8 bolts to case Spool valve No spring No throttle valve
8 bolts Spool D0DP-A Tag = 4J					FD-C4F-71-00KC-CV	Price	Picture not available
				D0DP-7A092-A {Top} D0DP-7A101-A {Bottom}
	70	8 bolts to case Spool valve No spring No throttle valve
					D0DZ-7A100-A
8 bolts Spool D1MP-AA					FD-C4F-71-005W-CG	Price
				D1MP-7A092-AA {Top} D1MP-7A101-AA {Bottom}
	71-	Pinto 8 bolts to case Spool valve Pinned spring
9 bolts D0AP-E					FD-C4F-71-00JV-E3	Price	Picture not available
				D0AP-7A092-E {Top} D2AP-7A101-AA {Bottom}
		9 bolts to case Spool valve Loose spring
9 bolts D0AP-E Tag = 7NE2					FD-C4F-71-00JT-KY	Price	Picture not available
				D0AP-7A092-E {Top} D2AP-7A101-AA {Bottom}
		9 bolts to case Spool valve Loose spring
9 bolts D1MP-AA					FD-C4F-71-007P-82	Price
				D1MP-7A092-AA {Top} D22P-7A101-AA {Bottom}
		9 bolts to case Spool valve Pinned spring
9 bolts D1MP-AA 7RE2 tag					FD-C4F-71-015X-HL	Price	Picture not available
				D1MP-7A092-AA {Top} D22P-7A101-AA {Bottom}
		9 bolts to case Spool valve Pinned spring
9 bolts E2AP-AA					FD-C4F-71-000E-H3	Price
				E2AP-7A092-AA {Top} E2SP-7A101-AA {Center} E2AP-7G003-AA {Bottom}
		C5 9 bolts to case Spool valve Large 'P' on valve body
9 bolts E??P-?					FD-C4F-71-0005-A1	Price	Picture not available
				E??P-7A092-? {Top} E??P-7A101-? {Bottom}
	82-86	C5 9 bolts to case Spool valve Large 'P' on valve body
9-bolt D32P-7A092-BA					FD-C4F-71-0061-KY	Price	Picture not available
				D32P-7A092-BA {Top} D22P-7A101-AA {Bottom}
	73	9 bolts to case Spool valve
9-bolt D32P-7A092-BA					FD-C4F-71-0072-C2	Price	Picture not available
				D32P-7A092-BA {Top} D42P-7A100-AA {Bottom}
	73	9 bolts to case Spool valve
9-bolt D32P-7A092-BB Any calibration					FD-C4F-71-00NM-JM	Price	Picture not available
				D32P-7A092-BB {Top} D42P-7A100-AA {Bottom}
	73	9 bolts to case Spool valve Pinned spring
9-bolt D32P-7A092-BB Calibration = 8Z-2					FD-C4F-71-00NN-9P	Price	Picture not available
				D32P-7A092-BB {Top} D42P-7A100-AA {Bottom}
	73	9 bolts to case Spool valve Pinned spring
9-bolt D3AP-7A092-DA					FD-C4F-71-0007-G5	Price
				D3AP-7A092-DA {Top} D2AP-7A101-AA {Bottom}
	73	9 bolts to case Spool valve Loose spring
9-bolt D3AP-7A092-DA Calibration = 8L-2					FD-C4F-71-00P3-NY	Price	Picture not available
				D3AP-7A092-DA {Top} D2AP-7A101-AA {Bottom}
	74	9 bolts to case Spool valve Loose spring
9-bolt D3AP-7A092-DA Calibration = 8L-A					FD-C4F-71-00NC-GY	Price	Picture not available
				D3AP-7A092-DA {Top} D2AP-7A101-AA {Bottom}
	73	9 bolts to case Spool valve Loose spring
9-bolt D3AP-7A092-DA Calibration = 8S-2					FD-C4F-71-0100-CR	Price	Picture not available
				D3AP-7A092-DA {Top} D2AP-7A101-AA {Bottom}
		9 bolts to case Spool valve Loose spring
9-bolt D3AP-7A092-DA Calibration = 8S-3					FD-C4F-71-00JU-A1	Price	Picture not available
				D3AP-7A092-DA {Top} D2AP-7A101-AA {Bottom}
	73	9 bolts to case Spool valve Loose spring
9-bolt D42P-7A092-AA Any calibration					FD-C4F-71-001C-E0	Price	Picture not available
				D42P-7A092-AA {Top} D42P-7A101-AA {Bottom}
	74-	9 bolts to case Spool valve Pinned spring
9-bolt D42P-7A092-AA Calibration = G8-2					FD-C4F-71-00NT-E3	Price	Picture not available
				D42P-7A092-AA {Top} D42P-7A101-AA {Bottom}
	74	9 bolts to case Spool valve Pinned spring
9-bolt D42P-7A092-AA Calibration = H8-C					FD-C4F-71-00NV-J7	Price	Picture not available
				D42P-7A092-AA {Top} D42P-7A101-AA {Bottom}
	75	9 bolts to case Spool valve Pinned spring
9-bolt D42P-7A092-AA Calibration = U6-4					FD-C4F-71-00Q1-KV	Price	Picture not available
				D42P-7A092-AA {Top} D42P-7A101-AA {Bottom}
	77	9 bolts to case Spool valve Pinned spring
9-bolt D4AP-7A092-CA Any calibration					FD-C4F-71-000R-GY	Price
				D4AP-7A092-CA {Top} D2AP-7A101-AA {Bottom}
		9 bolts to case Spool valve Loose spring
9-bolt D4AP-7A092-CA Calibration = H2-B					FD-C4F-71-00NW-L9	Price	Picture not available
				D4AP-7A092-CA {Top} D2AP-7A101-AA {Bottom}
	75	9 bolts to case Spool valve Loose spring
9-bolt D7EP-7A092-AA Any calibration					FD-C4F-71-0009-L9	Price
				D7EP-7A092-AA {Top} D7ZP-7A101-AA {Bottom}
		9 bolts to case Spool valve Pinned spring
9-bolt D7OP-7A092-AA					FD-C4F-71-0008-J7	Price
				D7OP-7A092-AA {Top} D2AP-7A101-AA {Bottom}
		9 bolts to case Spool valve Loose spring
9-bolt D7OP-7A092-AA Calibration = T8-4					FD-C4F-71-012R-93	Price	Picture not available
				D7OP-7A092-AA {Top}
	77
9-bolt D7OP-7A092-AA Calibration = Z80D					FD-C4F-71-00NK-EH	Price	Picture not available
				D7OP-7A092-AA {Top} D2AP-7A101-AA {Bottom}
	78	9 bolts to case Spool valve Loose spring
		VALVE BODY, Main Control			D8BZ-7A100-C
9-bolt D??P-7A092-?					FD-C4F-71-0002-FU	Price	Picture not available
				D??P-7A092-? {Top} D??P-7A101-? {Bottom}
	72-	9 bolts to case Spool valve
9-bolt D??P-7A092-?					FD-C4F-71-0004-KY	Price	Picture not available
				D??P-7A092-? {Top} D??P-7A101-? {Bottom}
	72-	9 bolts to case Spool valve Pinto
