  Page number:  FD-C4F-141

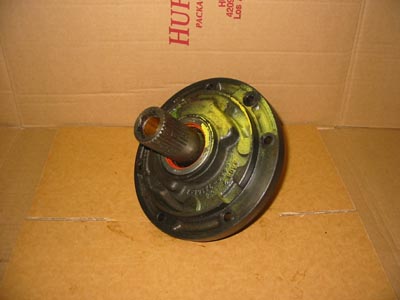

PUMP ASSEMBLY, Main
Call 877-771-3372 for current price & availability
Style Color
Code
OA/Thick OD/Deep ID/Wide Our Part Number Price Picture
Tooth Counts ID Marks
Year Miscellaneous Info
Years   Part Info Number
Call 877-771-3372 for current price & availability
Large input

Narrow rings
K413       FD-C4F-14-000T-93 Price
  C4AP-7A105-A {Pump Body}
D0AP-7A109-A2, Y {Stator Support}
70-77 Pump body = No o-ring groove
Stator support = Large bore for fat input, 4 narrow sealing rings

Large input

Narrow rings
X405       FD-C4F-14-009V-FJ Price
  C4AP-7A105-A {Pump Body}
D0AP-7A109-A {Stator Support}
  Pump body = No o-ring groove
Stator support = Large bore for fat input, 4 narrow sealing rings

Large input

Narrow rings
K413       FD-C4F-14-0003-HW Price
  C4AP-7A105 {Pump Body}
D0AP-7A109-A2, Y {Stator Support}
  Pump body = No o-ring groove
Stator support = Large bore for fat input, 4 narrow sealing rings

Large input

Narrow rings
YGE       FD-C4F-14-00K7-G2 Price Picture
not
available
  C4AP-7A105 {Pump Body}
D0AP-7A109-A2, Y {Stator Support}
  Pump body = No o-ring groove
Stator support = Large bore for fat input, 4 narrow sealing rings

Large input

Narrow rings

Iron rings
X405       FD-C4F-14-009E-HE Price
  C4AP-7A105 {Pump Body}
D0AP-7A109-A {Stator Support}
  Pump body = No o-ring groove
Stator support = Large bore for fat input, 4 narrow sealing rings

Large input

Wide rings

Iron rings
K413       FD-C4F-14-00FF-EW Price
  E0AP-7A105-CA {Pump Body}
D0AP-7A109-A1 {Stator Support}
  Pump body = No o-ring groove
Stator support = Large bore for fat input, 2 narrow & 2 wide cast iron sealing rings

Large input

Wide rings

Iron rings
K413       FD-C4F-14-00FC-6P Price
  C4AP-7A105-A {Pump Body}
D0AP-7A109-A2, Y {Stator Support}
  Pump body = No o-ring groove
Stator support = Large bore for fat input, 2 narrow & 2 wide cast iron sealing rings

Large input

Wide rings

Iron rings
X405       FD-C4F-14-0002-FU Price
  C4AP-7A105-A {Pump Body}
D0AP-7A109-A {Stator Support}
78-81 Pump body = No o-ring groove
Stator support = Large bore for fat input, 2 narrow & 2 wide cast iron sealing rings

    PUMP, Front D7AZ-7A103-A
Large input

Wide rings

Iron rings
K413       FD-C4F-14-00F5-GR Price
  C4AP-7A105-A {Pump Body}
D0AP-7A109-A1 {Stator Support}
  Pump body = No o-ring groove
Stator support = Large bore for fat input, 2 narrow & 2 wide cast iron sealing rings

Large input

Wide rings

Iron rings
        FD-C4F-14-008N-GY Price
  E0AP-7A105-CA {Pump Body}
D0AP-7A109-A2 {Stator Support}
  Pump body = No o-ring groove
Stator support = Large bore for fat input, 2 narrow & 2 wide cast iron sealing rings

Large input

Wide rings

Teflon rings
K413       FD-C4F-14-00EV-JX Price
  E0AP-7A105-CA {Pump Body}
D0AP-7A109-A2 {Stator Support}
  Pump body = No o-ring groove
Stator support = Large bore for fat input, 4 teflon sealing rings

Large input

Wide rings

Teflon rings
        FD-C4F-14-0001-CR Price
  E0AP-7A105-CA {Pump Body}
D0AP-7A109-A {Stator Support}
82-86 Pump body = No o-ring groove
Stator support = Large bore for fat input, 2 narrow cast iron & 2 wide teflon sealing rings

    PUMP, Front E2SZ-7A103-A
Large input

Wide rings

Teflon rings
VEK       FD-C4F-14-00FA-NK Price
  E0AP-7A105-CA {Pump Body}
D0AP-7A109-A1 {Stator Support}
  Pump body = No o-ring groove
Stator support = Large bore for fat input, 4 teflon sealing rings

Small input

Gasket
GYB       FD-C4F-14-00HU-KY Price

67-69 Pump body = No o-ring groove
Stator support = Small bore for skinny input

Small input

O-ring
LOV       FD-C4F-14-00HV-A1 Price

64-66 Pump body = O-ring groove
Stator support = Small bore for skinny input
