  Page number:  AW-ART-141

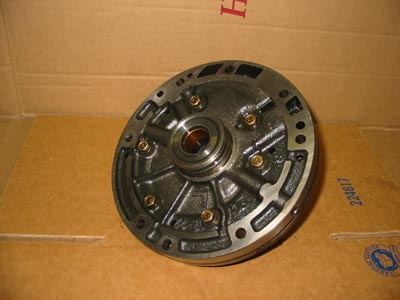

PUMP ASSEMBLY, Main
Call 877-771-3372 for current price & availability
Style Color
Code
OA/Thick OD/Deep ID/Wide Our Part Number Price Picture
Tooth Counts ID Marks
Year Miscellaneous Info
Years   Part Info Number
Call 877-771-3372 for current price & availability
2.95" Shaft

Large tower

Short drainback

0.597" gears
K413 4-3/8" 2.025" XD 0.597" XT AW-ART-14-004K-QM Price
  T {Pump Body}
M {Stator Support}
  A43D, 03-71
Tower = 2.025" OD
Shaft = 2.95"
Drainback = No 2" slot under gasket
Gears = 0.597" Thick

    HOUSING, Pump 35301-30030
    STATOR SHAFT 35370-22050
2.95" Shaft

Large tower

Short drainback

0.675" gears
K413 4-3/8" 2.025" XD 0.675" XT AW-ART-14-000L-NK Price
  L {Pump Body}
L {Stator Support}
  A42DL, 03-70L, A43DE, 03-71LE, A44DL, 03-72L, 03-72LE
Tower = 2.025" OD
Shaft = 2.95"
Drainback = No 2" slot under gasket
Gears = 0.675" Thick

    HOUSING, Pump 0K015-19-221
    SHAFT, Stator 0K015-19-240
    OIL PUMP ASSEMBLY 22800-54D10
    OIL PUMP COVER 22820-57B00
    HOUSING, Pump 35301-14010
    STATOR SHAFT 35370-14012
    PUMP, Front 3549631
2.95" shaft

Small tower

Long drainback

0.597" gears
X405 4-3/8" 2.000" XD 0.597" XT AW-ART-14-006F-GC Price Picture
not
available
  T {Pump Body}
T {Stator Support}
83 A41
Tower = 2.000" OD
Shaft = 2.95"
Drainback = 2" slot under gasket
Gears = 0.597"

    HOUSING, Pump 35301-30030
    STATOR SHAFT 35370-12020
35370-12021

3.60" Shaft

Large tower

Long drainback

0.597" gears
X405, BL 5-1/16" 2.025" XD 0.597" XT AW-ART-14-000K-LH Price
  T {Pump Body}
T {Stator Support}
  A40D, A42D, 03-70
Tower = 2.025" OD
Shaft = 3.60"
Drainback = 2" slot under gasket
Gears = 0.597"

    SHAFT, Stator 8-94257-060-0
    HOUSING, Pump 35301-30030
    STATOR SHAFT 35370-22031
    PUMP, Front 1239844
3.60" Shaft

Large tower

Long drainback

0.597" gears
X405 5-1/16" 2.025" XD 0.597" XT AW-ART-14-0038-AA Price
  T {Pump Body}
T {Stator Support}
  A42D, 03-70
Tower = 2.025" OD
Shaft = 3.60"
Drainback = 2" slot under gasket
Gears = 0.597"

    PUMP, Front 1239903-6
3.60" Shaft

Large tower

Short drainback

0.597" gears
EGG 5-1/16" 2.025" XD 0.597" XT AW-ART-14-000M-QM Price
  T {Pump Body}
M {Stator Support}
  A43D, 03-71
Tower = 2.025" OD
Shaft = 3.60"
Drainback = No 2" slot under gasket
Gears = 0.597"

    SUPPORT, Stator MD951778
    HOUSING, Front Pump MD951918
    HOUSING, Pump 35301-30030
    STATOR SHAFT 35370-30023
    PUMP, Front 1239911
3.60" Shaft

Small tower

Long drainback

0.597" gears
X405 5-1/16" 2.000" XD 0.597" XT AW-ART-14-000J-JF Price
  T {Pump Body}
T {Stator Support}
78-81 A40D
Tower = 2.000" OD
Shaft = 3.60"
Drainback = 2" slot under gasket
Gears = 0.597"

    HOUSING, Pump 35301-30030
    STATOR SHAFT 35370-30010
4.10" Shaft

Large tower

Long drainback

0.597" gears
GYY 5-1/2" 2.025" XD 0.597" XT AW-ART-14-0039-EE Price Picture
not
available
  T {Pump Body}
T {Stator Support}
  A40, 03-55
Tower = 2.025" OD
Shaft = 4.10"
Drainback = 2" slot under gasket
Gears = 0.597"

    SHAFT, Stator 8-94257-069-0
4.10" Shaft

Small tower

Long drainback

0.597" gears
X405 5-1/2" 2.000" XD 0.597" XT AW-ART-14-003A-MX Price Picture
not
available
  - {Pump Body}
T {Stator Support}
73-81 A40, 03-55
Pump body = 38/64" gears, High profile
Stator support = 4-6/64" shaft, 2" diameter tower, 2" drainback slot under gasket
Will not fit after 10/80

    BODY, Front Oil Pump 35301-22011
35301-30030

    SHAFT, Stator 35307-22011
35370-22010

4.10" Shaft

Small tower

Long drainback

0.597" gears
X405 5-1/2" 2.000" XD 0.597" XT AW-ART-14-009J-7Q Price Picture
not
available
  T {Pump Body}
T {Stator Support}
81-82 A40, 03-55
Tower = 2.000" OD
Shaft = 4.10"
Drainback = 2" slot under gasket
Gears = 0.597"
Low profile body
Will fit all prior years

    HOUSING, Pump 35301-30030
    STATOR SHAFT 35370-22011
