  Page number:  TY-WAP-4y0

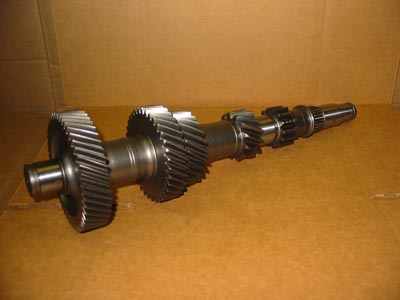

GEAR, Cluster (Countershaft)
Call 877-771-3372 for current price & availability
Style Color
Code
OA/Thick OD/Deep ID/Wide Our Part Number Price Picture
Tooth Counts ID Marks
Year Miscellaneous Info
Years   Part Info Number
Call 877-771-3372 for current price & availability
29-26-22-14 teeth

18 splines
OYO 13" 3-41/64" 41/64" XW TY-WAP-4Y-0066-GV Price Picture
not
available
R29-26-22-14-N18A <M>
82-86 W42, W52
Input = 20 teeth
3rd mainshaft = 25 teeth
2nd mainshaft = 31 teeth
1st mainshaft = 35 teeth
18 splines
Snap ring

    GEAR, Counter (Cluster) 33421-20060
29-26-22-14 teeth

18 splines
LKV 13" 3-41/64" 41/64" XW TY-WAP-4Y-00MG-KR Price Picture
not
available
R29-26-22-14-N18A <>
  W42, W52
Input = 20 teeth <L>
3rd mainshaft = 25 teeth
2nd mainshaft = 31 teeth
1st mainshaft = 35 teeth
18 splines
Snap ring

    GEAR, Counter (Cluster) 33421-20060
29-26-22-14-15 teeth OLR 8-15/16" 3-47/64"   TY-WAP-4Y-0084-ET Price Picture
not
available
R29-26-22-14-15 <>
73-80 W40
Input = 20 teeth
3rd mainshaft = teeth
2nd mainshaft = teeth
1st mainshaft = teeth
Snap ring

29-26-22-15 teeth

20 splines
OEG 13"     TY-WAP-4Y-0065-ET Price Picture
not
available
R29-26-22-15-N20A <>
74-83 W50
Input = 20 teeth
3rd mainshaft = 25 teeth
2nd mainshaft = 31 teeth
1st mainshaft = 34 teeth
20 splines
Snap ring

    GEAR, Counter (Cluster) 33421-20050
30-26-22-14-15 teeth   8-15/16"     TY-WAP-4Y-00A9-FF Price Picture
not
available
R30-26-22-14-15 <A>
  Snap ring
Input = 19 teeth

    GEAR, Counter (Cluster) 33421-31010
46-35-25-14-14 teeth OBY 14-3/8" 3-34/64"   TY-WAP-4Y-008L-HE Price Picture
not
available
R46-35-25-14-S14-N28 <OO>
  Input = 34 teeth, 39 points
Snap ring
Thru 2-84

    GEAR, Counter (Cluster) /Brg 33421-24010
33421-30230

    GEAR, Counter (Cluster) 33421-30230
46-35-25-14-14 teeth OGB       TY-WAP-4Y-008P-GN Price Picture
not
available
R46-35-25-14-S14-N28 <OO>
  Input = 34 tooth, 39 points
Snap ring
Thru 10-91
11-91 up is different pitch but same ID

    GEAR, Counter (Cluster) 33421-24011
33421-30180

46-35-25-14-14 teeth         TY-WAP-4Y-00K1-J7 Price Picture
not
available
R46-35-25-14-S14-N28 <OO>
  Input = 34 teeth, points
Snap ring

    GEAR, Counter 33421-30140
47-35-24-13-14 teeth LOG 14-7/16"     TY-WAP-4Y-00PF-LT Price Picture
not
available
R47-35-24-13-S14-N28 <OOO>
  W59
Input = 32 teeth, 37 points
3rd mainshaft = 33 teeth
2nd mainshaft = 35 teeth
1st mainshaft = 35 teeth

    GEAR, Counter (Cluster) 33421-28052
33301-30H50

47-35-24-13-14 teeth RBE       TY-WAP-4Y-0033-GK Price Picture
not
available
R47-35-24-13-S14-N28 <OOO>
  W56, 4x4
Thru 10-91
Snap ring
11-91 up is different pitch but same ID
Input = 32 tooth, No missing syncro teeth

47-35-24-13-14 teeth BVO 14-1/2" 3-41/64"   TY-WAP-4Y-00EU-AF Price Picture
not
available
R47-35-24-13-S14-N28 <OOO>
  Input = 32 teeth, 37 points
3rd mainshaft = teeth
2nd mainshaft = teeth
1st mainshaft = teeth
From 11-91
Snap ring

    GEAR, Counter (Cluster) 33421-28050
33421-28051

47-35-24-13-14 teeth YEO 14-7/16"     TY-WAP-4Y-005E-JU Price
R47-35-24-13-S14-N28 <OOO>
  W59
Input = 32 teeth, 37 points
3rd mainshaft = 33 teeth
2nd mainshaft = 35 teeth
1st mainshaft = 35 teeth
From 11-91
Snap ring

    GEAR, Counter (Cluster) 33421-28051
33301-30H30

47-35-24-13-14 teeth

10" long
RLL 10-1/16"     TY-WAP-4Y-007G-F1 Price Picture
not
available
R47-35-24-13-S14 <OOO>
  W46, Rwd
Input = 32 teeth, 39 points
3rd mainshaft = 33 teeth
2nd mainshaft = 35 teeth
1st mainshaft = 35 teeth

    GEAR, Counter (Cluster) 33421-35110
33301-30H90

47-35-24-13-14 teeth

14-7/16" long
BYL 14-7/16"     TY-WAP-4Y-005C-EP Price
R47-35-24-13-S14-N28 <OOO>
  4x4
Input = 32 teeth, points
3rd mainshaft = 33 teeth
2nd mainshaft = 35 teeth
1st mainshaft = 35 teeth

    GEAR, Counter (Cluster) 33421-30170
47-35-24-13-14 teeth

14-7/16" long
VVY 14-7/16"     TY-WAP-4Y-011C-MM Price Picture
not
available
R47-35-24-13-S14-N28 <OOO>
  4x4
Input = 32 teeth, points
3rd mainshaft = 33 teeth
2nd mainshaft = 35 teeth
1st mainshaft = 35 teeth

    GEAR, Counter (Cluster) /Brg 33421-22050
33301-30H70

47-35-25-14-14 teeth LVL 14-1/2"     TY-WAP-4Y-00T1-JJ Price Picture
not
available
R47-35-24-14-S14-N28 <>
  W55, Rwd
Input = teeth, points
Thru 10-91
Snap ring
11-91 up is different pitch but same ID

47-35-25-14-14 teeth REY 14-1/2"     TY-WAP-4Y-0079-E3 Price Picture
not
available
R47-35-25-14-S14-N28 <O>
  W55, Rwd
Input = 32 teeth, 39 points
3rd mainshaft = 33 teeth
2nd mainshaft = 35 teeth
1st mainshaft = 34 teeth
Thru 10-91
Snap ring
11-91 up is different pitch but same ID

    GEAR, Counter (Cluster) 33421-22021
33301-30H60

47-35-25-14-14 teeth YLO       TY-WAP-4Y-00KN-C5 Price Picture
not
available
R47-35-24-14-S14-N28 <O>
  W5., Rwd
Input = 32 teeth, 37 points
From 11-91
Snap ring
10-91 back is different pitch but same ID

    GEAR, Counter (Cluster) 33421-30150
33421-30151
